Quad II






Quad
Quad II

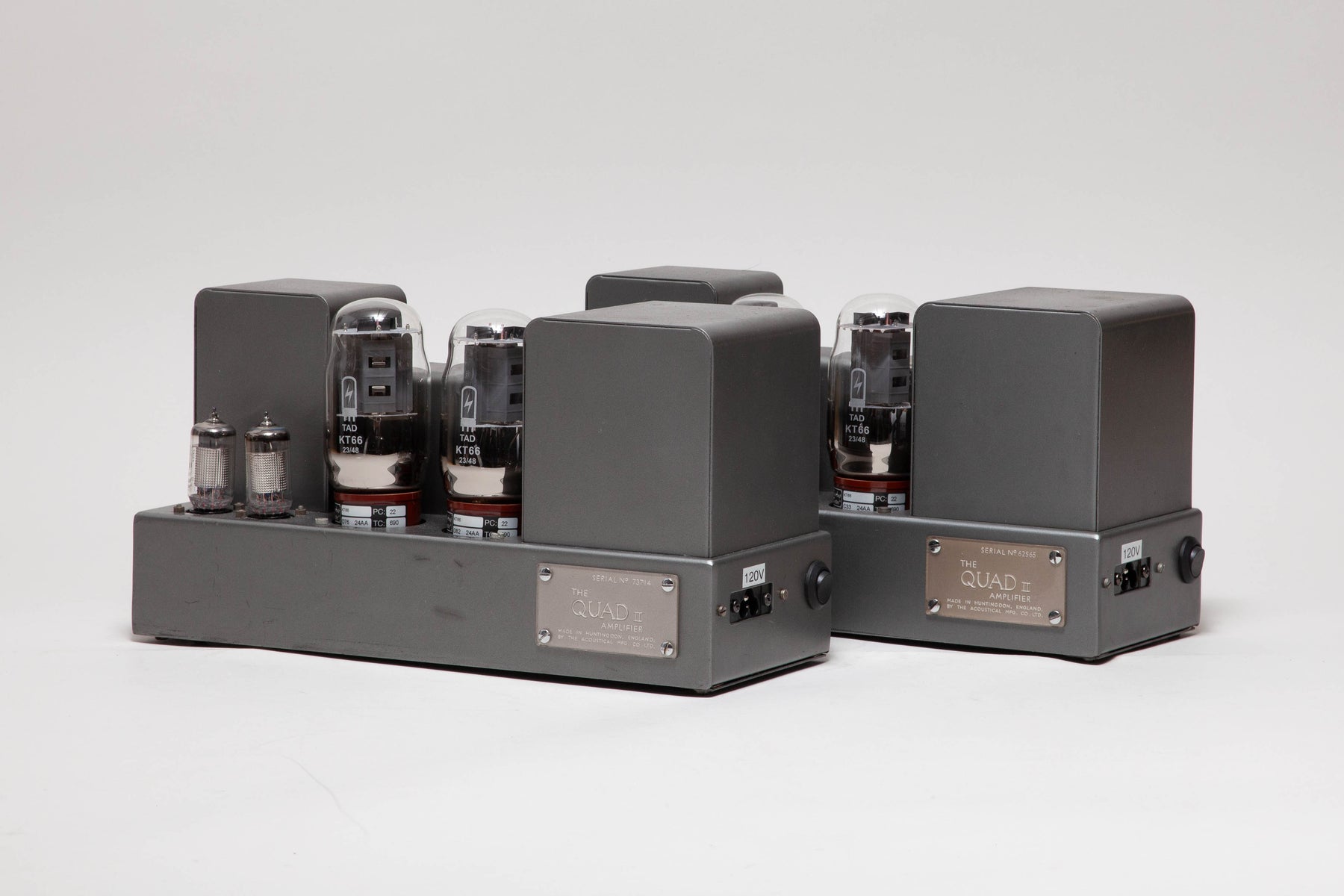

Legendary Quad II Monoblock Amplifiers in perfect aesthetic and working condition. These amplifiers have been fully serviced by our team of specialized technicians and have received the utmost care:

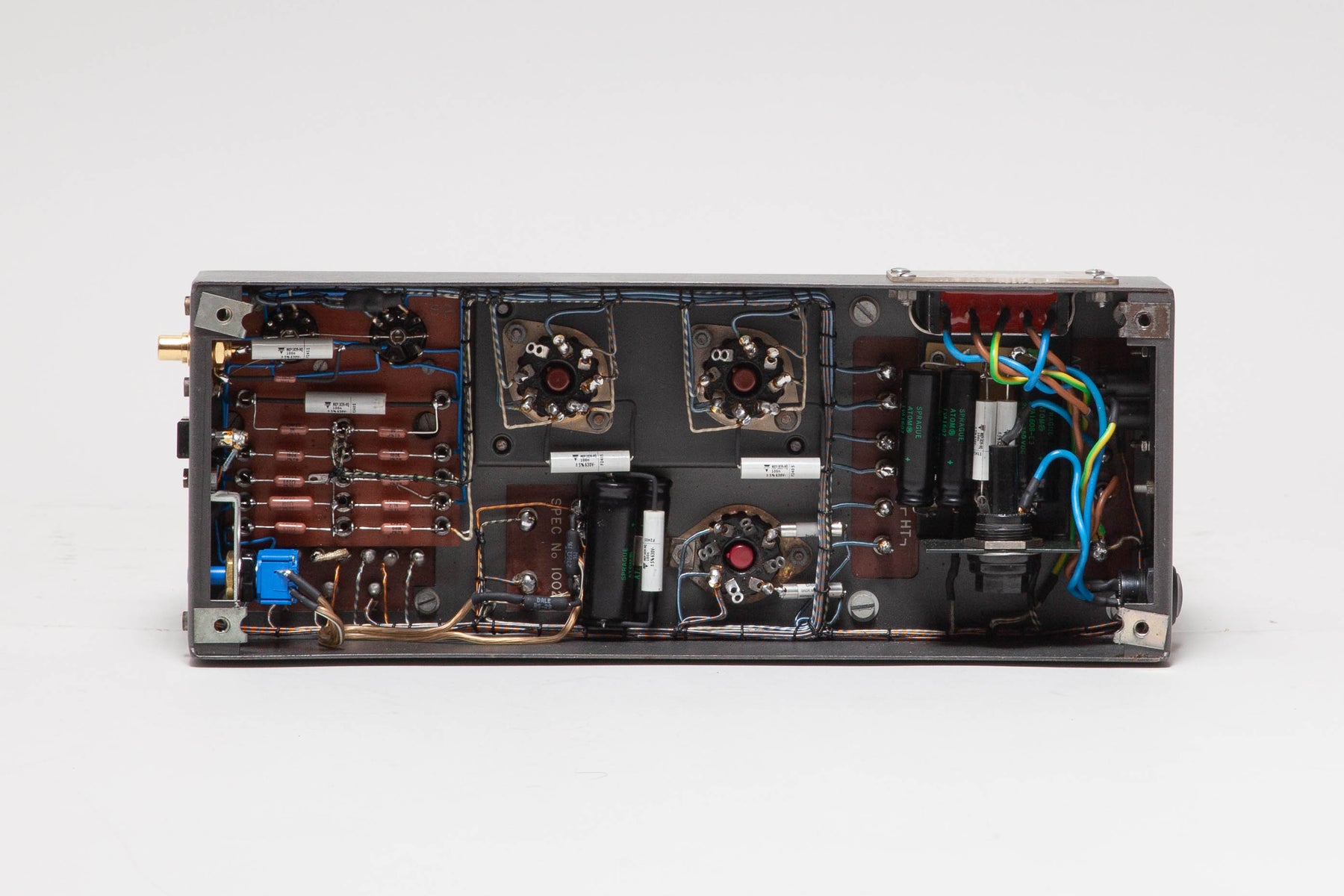

-Complete replacement of all capacitors and resistors.

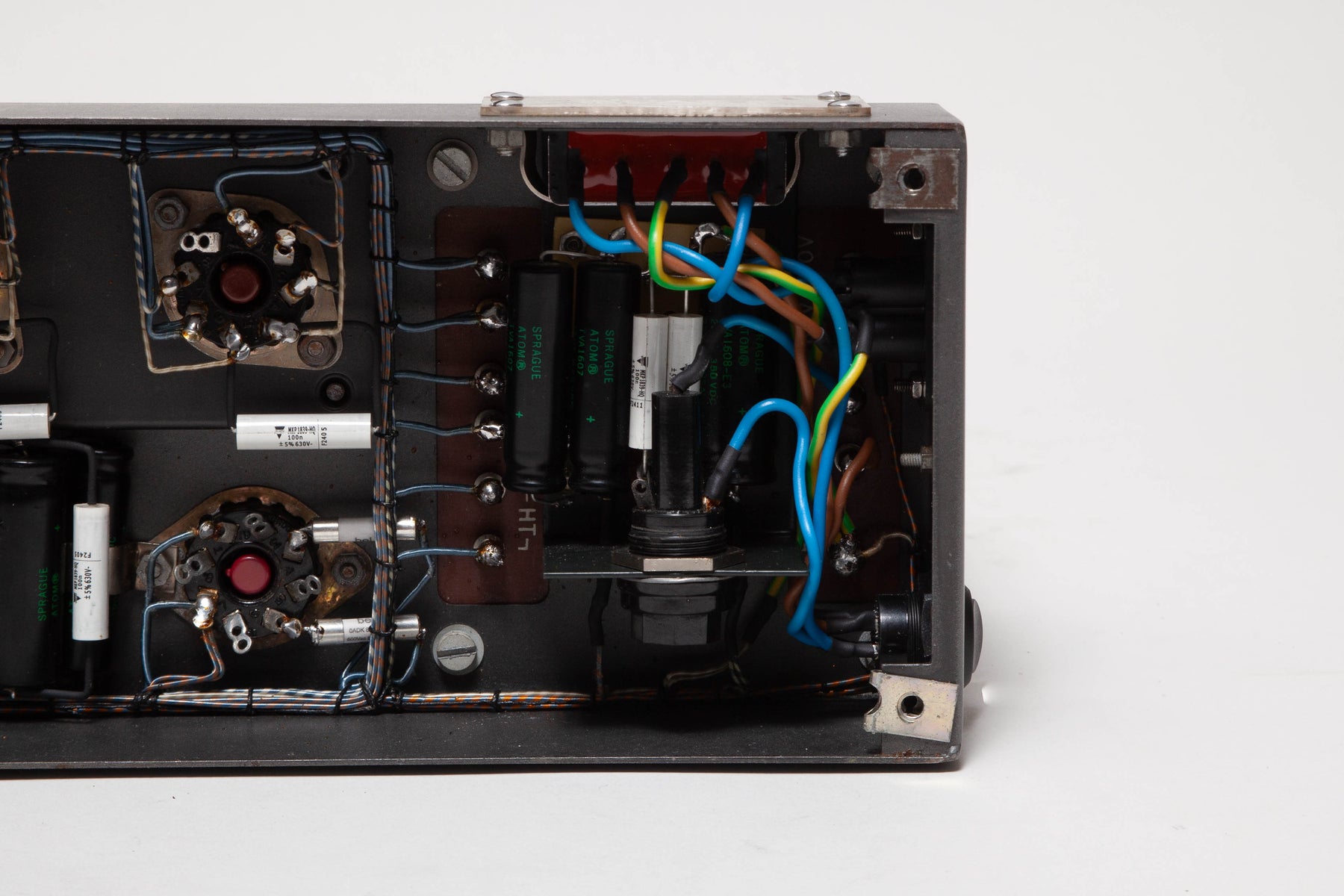

- Addition of an ON/OFF switch installed in place of the fuse holder.
- EMI filters on the input.
- Addition of an IEC power socket.

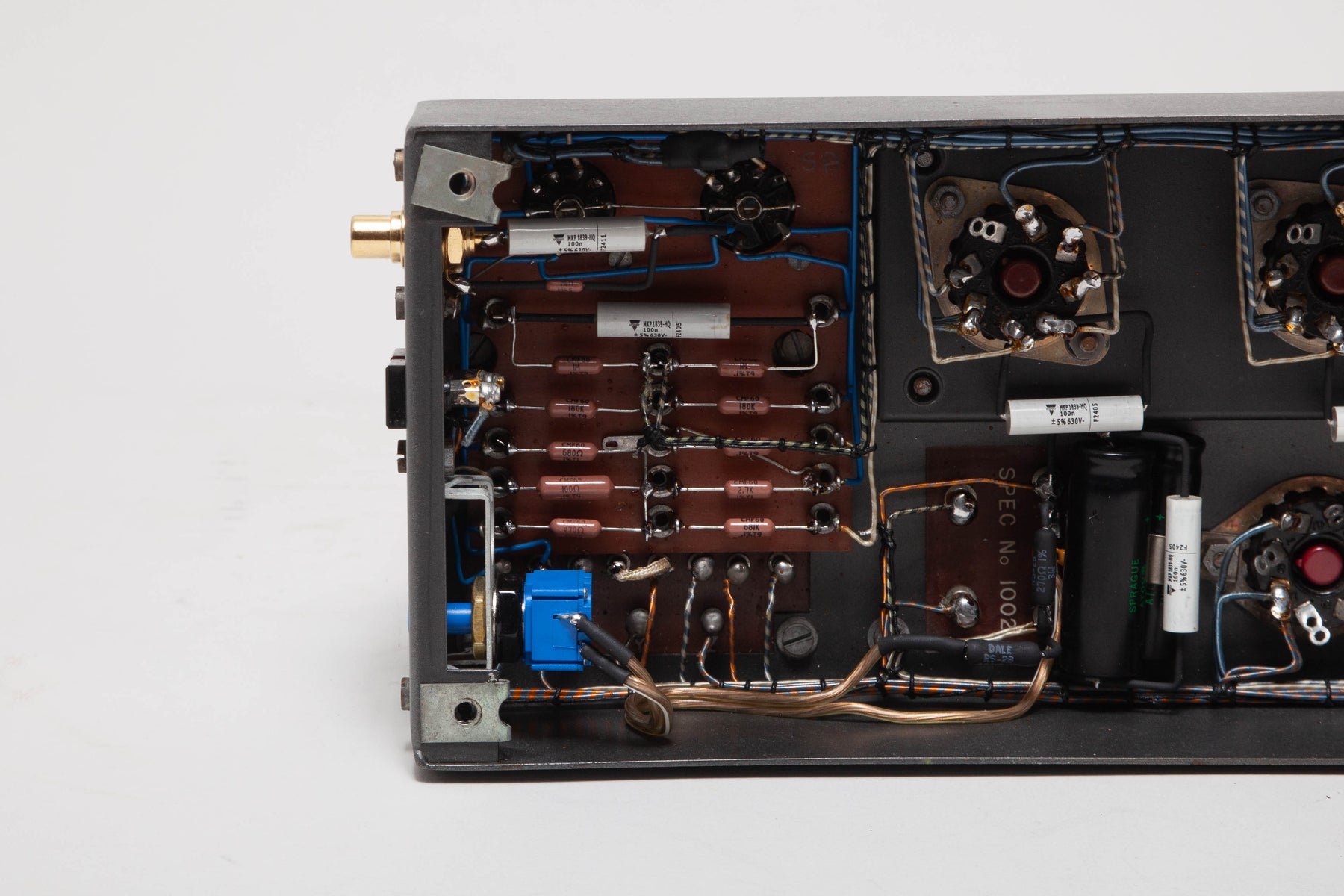

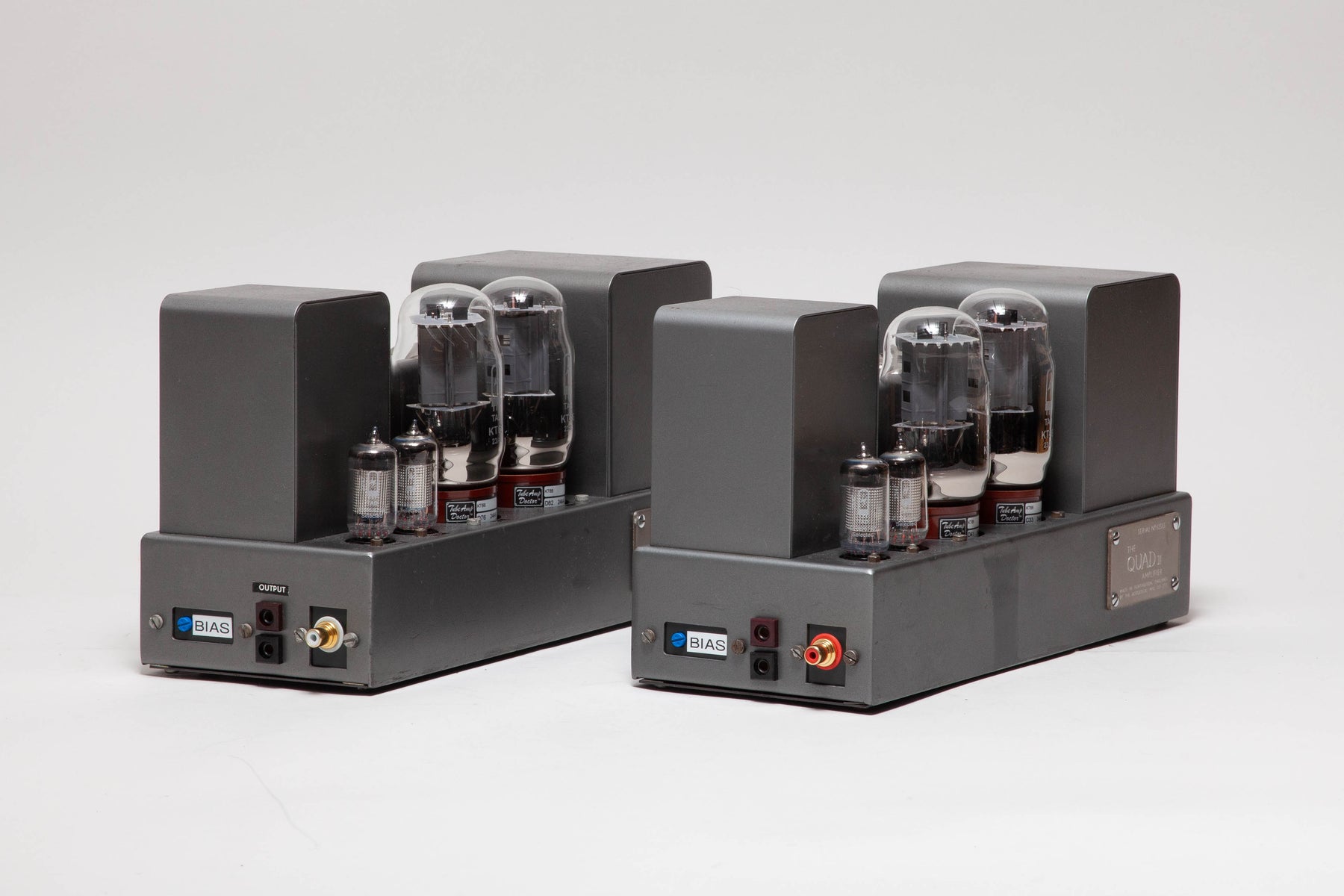

- Creation of an adjustable BIAS circuit.
- RCA input connectors.
- Brand-new 12AX7 and KT66 / TAD tubes.
A Hi-Fi legend! Quad produces few but exceptional products. First introduced in 1953, the Quad II monophonic power amplifier is still part of the manufacturer’s catalog today.

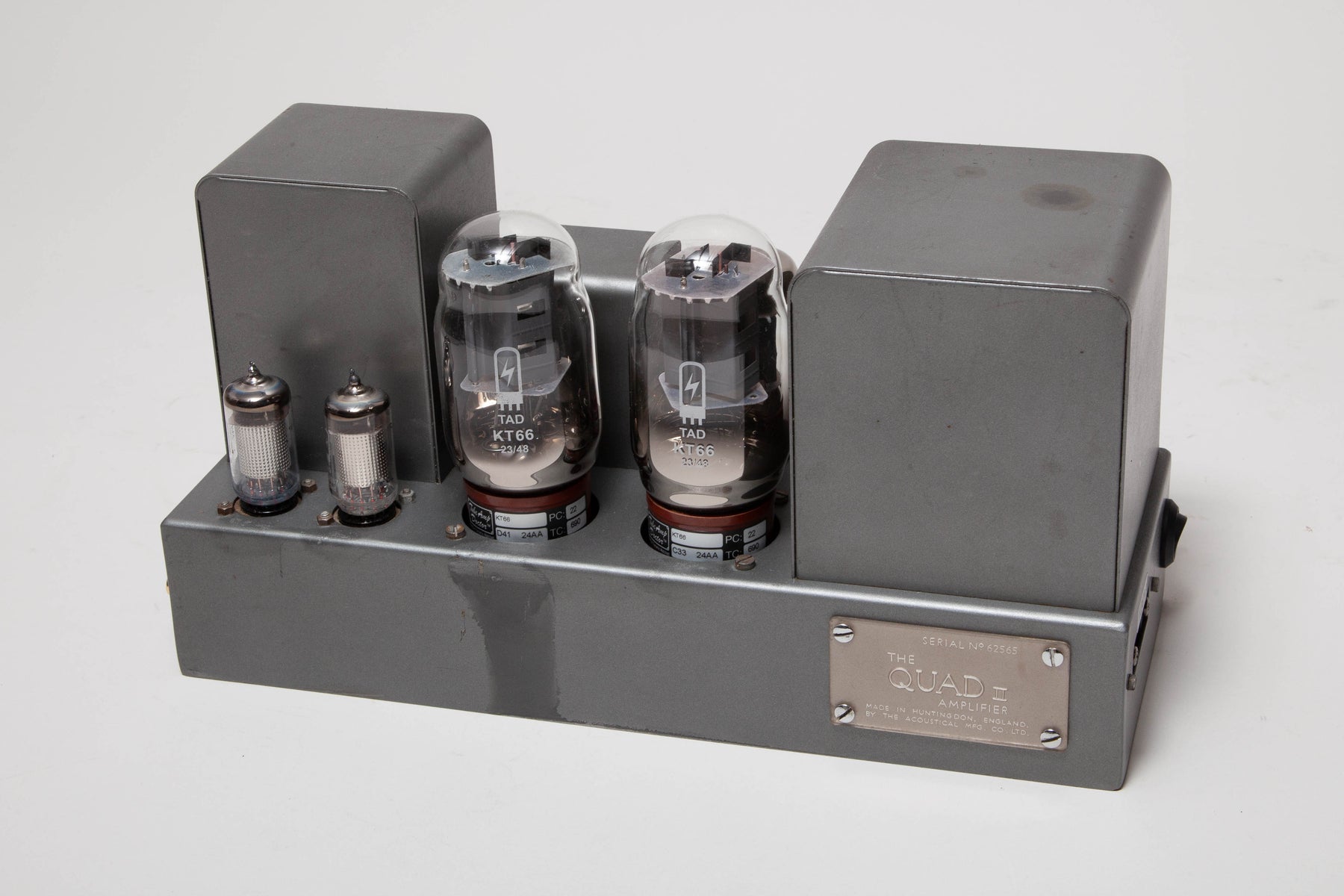

Designed by Peter Walker, founder of Quad, the Quad II delivers 15 watts of power and uses the legendary KT66 tubes, which were later used by Jim Marshall to create another legend in the world of guitar amplification: the JTM45.
For a fully vintage "in-house" Quad system, these Quad II monobloc amplifiers can be paired with the Quad 22 preamplifier and the ESL 57 electrostatic panels.
-
Reach out to us via e-mail to organize the delivery of such equipment.
Output power: 15 watts at 8Ω (mono)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.25%
Input sensitivity: 1.4V
Signal-to-noise ratio: 80dB
Tubes: EF86 (x2), KT66 (x2), GZ32 (x1)
Dimensions: 330 x 120 x 165mm
Weight: 8.3kg
110/240 Volt transformer and wiring included
